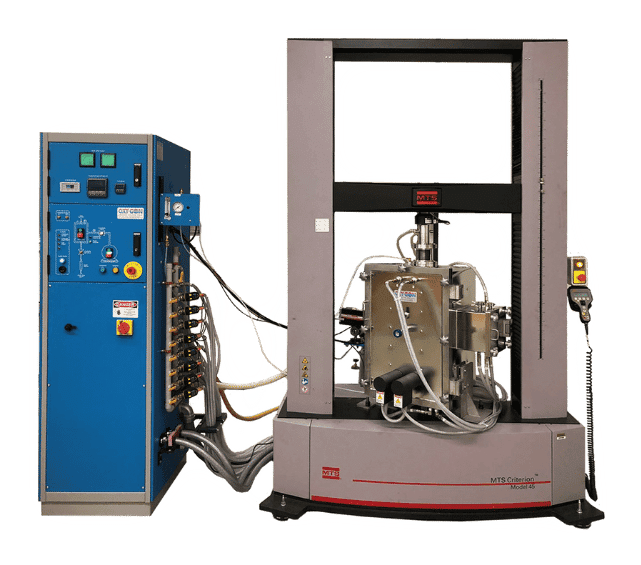

Physical Testing Furnaces
Whether it’s for Tensile Testing or Creep, Oxy-Gon supplies furnace systems that accommodate many of the different test frame manufactures.
Our Physical Testing Furnaces allow for a combination of high temperature, controlled atmosphere, and physical testing that is outside of most manufactures ability to provide. Implementing our furnace expertise, with the test frame technology, the physical test furnaces allow samples to be tested for compression strength, deflection, fatigue, multi-axial testing, tensile strength, torsional strength, etc. using various temperatures and controlled atmospheres.
Oxy-Gon’s water-cooled, stainless steel chambers allow for the adaptation of extensometers, test equipment, and test grips, using custom ports and feed throughs.
Basic High Temperature Furnace System includes the following components:
- Furnace Assembly
- Heat Zone
- Power Supply
- Evacuation System
- Inert Gas System
- Additional features and specifications are also available
The Heat Zone
Depending on the operating temperatures of the unit and your common applications, the element and shield packages are available in Molybdenum, Tantalum, Tungsten, or Graphite.
